Singlephase S - Series (G-3)
S700-G3 / S1000-G3 / S1500-G3 / S2000-G3 / S2500-G3 / S3000-G3 / S3300-G3

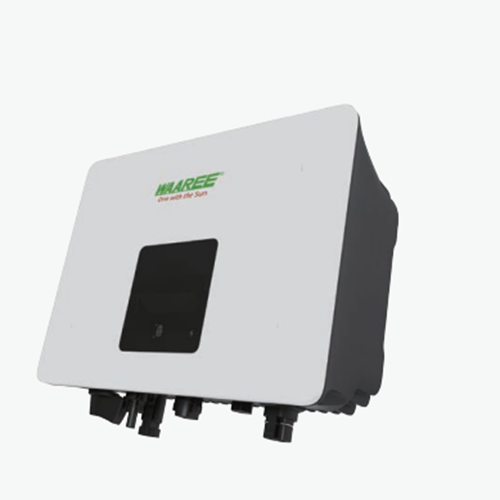

S SERIES (G3) SINGLE MPPT INVERTERS
Offer a range of single MPPT single-phase inverters offering unparalleled efficiency and performance. Our range starts with the S700-G3 - small and compact and with an ultra-low start-up voltage that will ensure you harvest the most energy possible from your solar panels.
| Model | S700-G3 | S1000-G3 | S1500-G3 | S2000-G3 | S2500-G3 | S3000-G3 | S3300-G3 |
|---|---|---|---|---|---|---|---|
| Max. Recommended DC Power [W] | 1050 | 1500 | 2250 | 3000 | 3750 | 4500 | 5400 |
| Max. DC Voltage [V] | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Nominal DC Operating Voltage [V] | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| Max. Input Current [A] | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Max. Short Circuit Current [A] | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| MPPT Voltage Range [V] | 50–480 | 50–480 | 50–480 | 50–480 | 50–480 | 50–480 | 50–480 |
| MPPT Voltage Range (Full Load) [V] | 80–450 | 110–450 | 160–450 | 210–450 | 240–450 | 280–450 | 300–450 |
| Start-up Voltage [V] | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| No. of MPP Trackers | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Strings per MPP Tracker | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
⚡ AC Output
| Parameter | S700-G3 | S1000-G3 | S1500-G3 | S2000-G3 | S2500-G3 | S3000-G3 | S3300-G3 |
|---|---|---|---|---|---|---|---|
| Nominal AC Power [W] | 700 | 1000 | 1500 | 2000 | 2500 | 3000 | 3300 |
| Max. AC Apparent Power [VA] | 800 | 1100 | 1650 | 2200 | 2750 | 3300 | 4000 |
| Rated Grid Voltage [Vac] | 220/230/240 | 220/230/240 | 220/230/240 | 220/230/240 | 220/230/240 | 220/230/240 | 220/230/240 |
| Rated Grid Frequency [Hz] | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Nominal AC Current [A] | 3.0 | 4.3 | 6.5 | 8.7 | 10.9 | 13.0 | 14.3 |
| Max. AC Current [A] | 3.5 | 4.8 | 7.2 | 9.6 | 12.0 | 14.3 | 17.4 |
| Displacement Power Factor | 1 (0.8 leading ~ 0.8 lagging) | ||||||
| THDi (Nominal Output) | <3% | <3% | <3% | <3% | <3% | <3% | <3% |
