Three Phase T Series G3
T3-G3/T4-G3/T5-G3/T6-G3/T8-G3/T10-G3 T12-G3/T15-G3/T17-G3/T20-G3/T23-G3/T25-G3

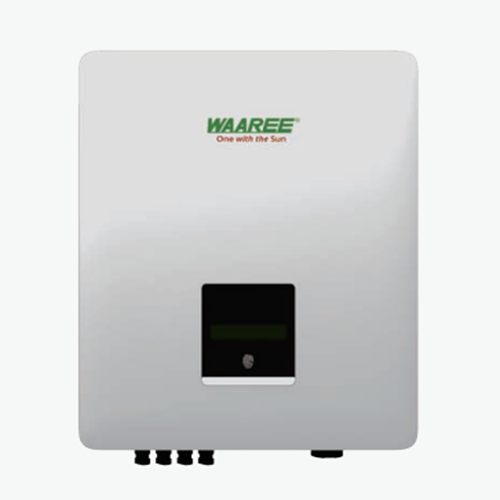

T SERIES (G3) 3-PHASE INVERTERS
The T Series inverter range is aimed at 3-phase domestic and small-scale commercial installations, offering unrivalled performance and versatility for increased yield potential and longer generation windows. The 3-phase T Series inverter options range from 3kW to 25kW.
| Parameter | T3-G3 | T4-G3 | T5-G3 | T6-G3 | T8-G3 | T10-G3 | T12-G3 | T15-G3 | T17-G3 | T20-G3 | T25-G3 | T23-G3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Input Power [W] | 4500 | 6000 | 7500 | 9000 | 12000 | 15000 | 17000 | 20000 | 25000 | – | – | 34500 |
| Max. Input Voltage [V] | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | – | – | 1100 |
| Start-up Input Voltage [V] | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | – | – | 140 |
| Rated Input Voltage [V] | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | – | – | 600 |
| MPPT Operating Voltage Range [V] | 140–1000 | 140–1000 | 140–1000 | 140–1000 | 140–1000 | 140–1000 | 140–1000 | 140–1000 | 140–1000 | – | – | 140–1000 |
| Max. Input Current [A] | 14 | 14 | 14 | 14 | 14 | 14 | 28 | 28 | 28 | – | – | 28 |
| Max. Short-circuit Current [A] | 18.2 | 18.2 | 18.2 | 18.2 | 18.2 | 18.2 | 36.4 | 36.4 | 36.4 | – | – | 36.4 |
| No. of Independent MPP Trackers | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | – | – | 2 |
| Strings per MPP Tracker | 1+1 | 1+1 | 1+1 | 1+1 | 1+1 | 1+1 | 2+2 | 2+2 | 2+2 | – | – | 2+2 |
| Parameter | T3-G3 | T4-G3 | T5-G3 | T6-G3 | T8-G3 | T10-G3 | T12-G3 | T15-G3 | T17-G3 | T20-G3 | T25-G3 | T23-G3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Output Power [W] | 3000 | 3300 | 4000 | 4400 | 5000 | 5500 | 6000 | 6600 | 7500 | 8800 | 10000 | 23000 |
| Max. Output Apparent Power [VA] | 3300 | 3960 | 4400 | 5060 | 5500 | 5830 | 6000 | 6600 | 7500 | 8800 | 10000 | 25300 |
| Rated Grid Voltage [V] | 3/N/PE, 220/380, 230/400, 240/415 | Same for all | ||||||||||
| Rated Grid Frequency [Hz] | 50/60 | Same for all | ||||||||||
| Rated Output Current [A] | 4.3 | 4.8 | 5.8 | 6.4 | 7.2 | 8.0 | 8.7 | 9.6 | 11.6 | 12.8 | 14.5 | 33.3 |
| Max. Output Current [A] | 4.8 | 5.3 | 6.4 | 7.0 | 8.0 | 8.8 | 9.6 | 10.5 | 12.8 | 14.2 | 15.9 | 36.7 |
| Power Factor | 1 (Adjustable 0.8 leading ~ 0.8 lagging) | Same for all |
