Singlephase F Series-g2
F3000-G2 / F3600-G2 / F4600-G2/ F5000-G2 / F5300-G2 / F6000-G2

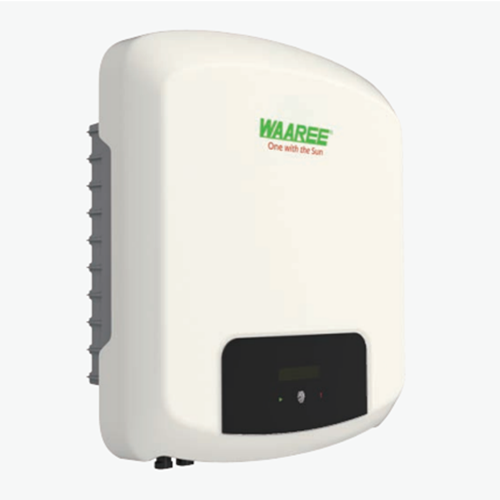

F SERIES (G2) DUAL MPPT INVERTERS
Offer a range of single and dual-MPPT single-phase inverters offering unparalleled efficiency and performance. Our dual-MPPT F Series (G2) range includes 3.0 - 6.0kW models. The F Series (G2) is IP65 rated and battery ready for easy upgrade when paired with a charge controller.
| Parameter | F3000-G2 | F3600-G2 | F4600-G2 | F5000-G2 | F5300-G2 | F6000-G2 |
|---|---|---|---|---|---|---|
| Max. Input Power [W] | 4500 | 5400 | 6900 | 7500 | 7950 | 9000 |
| Max./Min. Input Voltage [V] | 600/80 | 600/80 | 600/80 | 600/80 | 600/80 | 600/80 |
| Start-up Input Voltage [V] | 120 | 120 | 120 | 120 | 120 | 120 |
| Rated Input Voltage [V] | 360 | 360 | 360 | 360 | 360 | 360 |
| MPPT Operating Voltage Range [V] | 80–550 | 80–550 | 80–550 | 80–550 | 80–550 | 80–550 |
| Max. Input Current [A] | 14 | 14 | 14 | 14 | 14 | 18 |
| Max. Short-circuit Current [A] | 18 | 18 | 18 | 18 | 18 | 18 |
| No. of Independent MPP Trackers | 2 | 2 | 2 | 2 | 2 | 2 |
| Strings per MPP Tracker | 1 | 1 | 1 | 1 | 1 | 1 |
| Parameter | F3000-G2 | F3600-G2 | F4600-G2 | F5000-G2 | F5300-G2 | F6000-G2 |
|---|---|---|---|---|---|---|
| Rated Output Apparent Power [VA] | 3000 | 3600 | 4600 | 5000 | 5300 | 6000 |
| Max. Output Apparent Power [VA] | 3300 | 3960 | 5060 | 5500 | 5830 | 6000 |
| Rated Grid Voltage [Vac] | 220/230/240 | 220/230/240 | 220/230/240 | 220/230/240 | 220/230/240 | 220/230/240 |
| Rated Grid Frequency [Hz] | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated Output Current [A] | 13.0 | 15.7 | 20.0 | 21.7 | 23.0 | 26.1 |
| Max. Output Current [A] | 14.3 | 17.2 | 22.0 | 23.9 | 25.3 | 26.1 |
| Power Factor | 1 (Adjustable 0.8 leading to 0.8 lagging) | Same | Same | Same | Same | Same |
| THDi [%] | <3 | <3 | <3 | <3 | <3 | <3 |
